MAX-2 1.4GHz 10W Professional Signal Booster for UAV Data Links | Chipomi

The ACASOM MAX-2 1.4GHz version is designed to provide reliable long-range data transmission for professional UAV operations. Operating within the 1380–1440MHz band, it supports telemetry links, HD video transmission, and control channels in demanding field environments.

The system integrates a 10W (40dBm) RF amplifier with a built-in 22.2V 5000mAh lithium battery, delivering more than 5 hours of continuous runtime without external power.

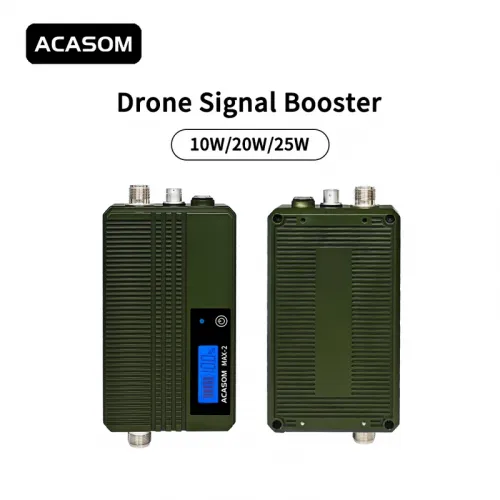

Its IP68-rated aluminum housing protects against water and dust. With dimensions of 174x87.5x44.5mm and a weight of 1.5kg, it fits seamlessly into mobile field kits.

Technical Specifications:

Why Choose This Module:

• The MAX-2 operates within the 1380–1440MHz band suited for stable UAV telemetry links.
• Its 10W (40dBm) output power strengthens long-distance RF connections.
• The built-in 22.2V 5000mAh battery enables more than 5 hours of autonomous operation.
• The IP68 aluminum enclosure protects against water and dust. A <1 μs switch speed supports low-latency data handling.

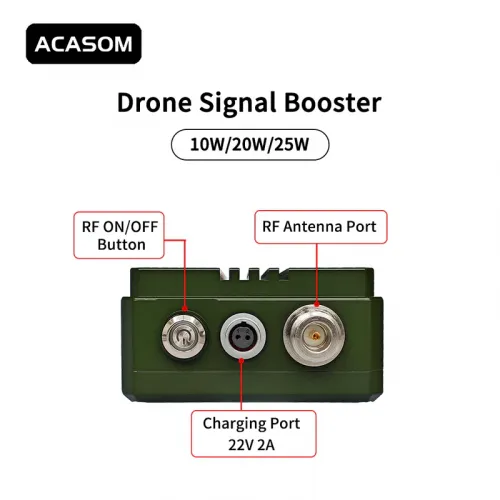

• The N-Type Female connector ensures compatibility with professional antennas.

Applications:

• Suitable for BVLOS drone operations. Used in industrial inspection and monitoring tasks.
• Supports long-range aerial data transmission.
• Applicable in search and rescue missions.
• Relevant for scientific and environmental UAV research.
• Suitable for professional aerial cinematography systems.

Package Includes:

1. 1 x MAX-2 Portable 10W Signal Booster

2. 1 x 22.2V Fast Charging Adapter

Important Notes:

• Designed for professional field use.

• IP68-rated aluminum housing.

FAQ:

1. What frequency band does it support?
   The unit operates in the 1380–1440MHz (1.4GHz) band.
2. What is the maximum output power?
   Maximum output power is 40dBm (10W).
3. How long does it run on battery?
   More than 5 hours with the integrated 5000mAh battery.
4. Is it suitable for outdoor field use?
   Yes, the IP68 enclosure protects against water and dust.
5. What RF connector is used?
   It uses an N-Type Female RF connector.
6. What operating temperature range is specified?
   -30℃ to +70℃.

The ACASOM MAX-2 1.4GHz 10W portable signal booster is engineered for professional UAV data link and telemetry applications. Covering the 1380–1440MHz band, it supports stable long-range communication in demanding field environments.

With a maximum output of 40dBm (10W), the booster enhances signal strength for data and video transmission. The integrated 22.2V 5000mAh battery delivers over 5 hours of runtime, making it suitable for extended field missions without external power.

Its IP68-rated aluminum housing ensures protection from water and dust. Compact dimensions and 1.5kg weight allow easy integration into mobile UAV kits.

Order the ACASOM MAX-2 1.4GHz 10W from Chipomi to equip your professional drone system with a reliable long-range telemetry solution.
