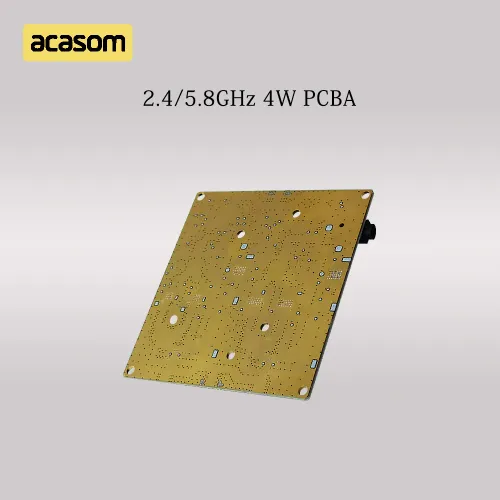

2.4/5.8GHz 4W Compact Dual Band RF Amplifier for FPV and Wireless Systems | Chipomi

The ACASOM 2.4/5.8GHz dual band RF amplifier is a compact solution designed to strengthen and stabilize wireless communication links. It operates across the 2400-2500MHz and 5725-5850MHz bands, delivering 4W (36dBm) output power on each channel.

This module is intended for systems where signal stability, compact size, and dependable operation matter. Its aluminum housing, small dimensions, and wide operating temperature range make it suitable for mobile platforms, outdoor installations, and space-constrained equipment.

Both channels provide 18dB gain on transmit and 18dB gain on receive. The module also supports fast TX/RX switching, which is valuable in real-time wireless systems, video links, and remote control channels.

Technical Specifications:

Common Specifications:

Why Choose This Module:

• Dual-band operation reduces the need to source separate amplifiers for 2.4GHz and 5.8GHz systems.

• 4W output on each channel provides useful signal headroom for demanding wireless links.

• Compact dimensions make the module easier to install in drones and tight hardware layouts.

• The aluminum housing supports practical use in mobile and outdoor environments.

• Fast TX/RX switching is beneficial for real-time communication and control links.

• Standard connector types simplify integration into compatible RF setups.

Applications:

• Long-range drone FPV and telemetry systems.

• Industrial wireless video surveillance and monitoring.

• HD video transmission links.

• Remote control and data links for robotic platforms.

• Industrial wireless communication channels.

• Mobile and outdoor wireless systems.

Package Includes:

ACASOM 2.4/5.8GHz 4W Dual Band RF Amplifier

Important Notes:

• For optimal performance and amplifier protection, ensure proper antenna connection before applying power.

• Adequate heat dissipation is recommended during sustained high-power operation.

FAQ:

1. Does the module support two frequency bands at the same time?
   Yes, the amplifier includes both a 2.4GHz channel and a 5.8GHz channel.
2. What output power is available on each channel?
   Each channel provides 4W output power, equivalent to 36dBm.
3. Is this amplifier suitable for drone FPV systems?
   Yes, it is suitable for FPV, telemetry, and other wireless drone communication links.
4. Can the module be used in industrial wireless systems?
   Yes, its specifications make it suitable for video, monitoring, and data communication applications.
5. What connectors are used on the module?
   The input uses SMA-Female and the output uses RP-SMA-Female connectors.
6. Is the module convenient for compact hardware integration?
   Yes, the 57x53x5mm form factor is well suited for installations with limited space.
7. What should be considered for long-term operation?
   Proper heat dissipation is recommended for stable use during sustained high-power operation.

The ACASOM 2.4/5.8GHz 4W compact dual band RF amplifier is designed for wireless systems that require stable signal reinforcement across two widely used frequency bands. Operating at 2400-2500MHz and 5725-5850MHz, it delivers up to 36dBm output power on each channel, making it suitable for applications where reliable wireless performance is critical.

This dual band amplifier can be considered for drone FPV systems, telemetry links, HD video transmission, industrial monitoring, and remote control platforms. With 18dB transmit gain and 18dB receive gain on both channels, the module helps improve link consistency and maintain more dependable wireless communication in demanding environments.

Its compact 57x53x5mm size makes it practical for drones, robotic platforms, external RF units, and other installations with tight space limits. The aluminum housing and operating range from -30℃ to +70℃ support use in industrial and outdoor conditions, while standard RF connectors simplify system integration.

For buyers looking for a compact 2.4/5.8GHz 4W amplifier for FPV, industrial wireless communication, or video transmission, the ACASOM module offers a practical option for integration into professional and commercial projects. At Chipomi, it is presented as a solution for applications where compact design, stable performance, and easier installation matter.
