The ACASOM 960–1100MHz 60W GaN High-Power Amplifier is designed for demanding UAV communication systems operating in the 1GHz band. Delivering up to 48dBm (~60W) saturated output power, it supports extended control links and stable telemetry transmission.

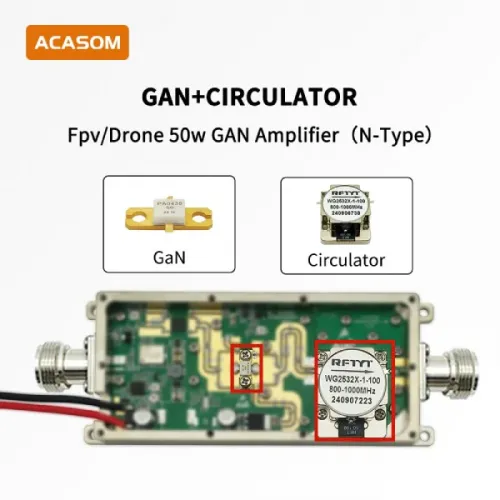

Built on GaN technology, the amplifier provides 45% power added efficiency at 48dBm and maintains ±0.5dB gain flatness. Standard gain is 37dB with customizable options between 25–37dB. The rugged N-Type Female connector ensures secure high-power RF integration.

The aluminum housing measures 128.5x53x17mm and weighs 0.26kg, making it suitable for both fixed ground station and mobile deployments. Operating temperature range: -30℃ - +85℃.

Technical Specifications:

Why Choose This Module:

• 48dBm (~60W) output for stable long-range RF links.

• Optimized for the 960–1100MHz band.

• 37dB gain with adjustable options for system matching.

• N-Type Female connector for secure antenna integration.

• Compact aluminum housing for ground or mobile setups.

• -30℃ - +85℃ operating range for demanding environments.

Applications:

• UAV control and telemetry link enhancement.

• Ground station integration in the 1GHz band.

• Industrial drone inspection and monitoring systems.

• Heavy-lift and logistics drone communication systems.

• Mobile RF command post deployments.

Package Includes:

1 x GaN High-Power Amplifier Unit.

Important Notes:

• A stable 28V / 5A (or higher) DC power supply is required.

• Adequate heat dissipation with active cooling is strongly recommended for sustained high-power operation.

• Connection sequence: connect antenna first, then power, then enable signal source.

• Rated 48dBm output is achievable with proper input drive.

FAQ:

1. Is it designed for 960–1100MHz systems?
   Yes, the amplifier operates specifically within 960–1100MHz.
2. What power supply is required?
   Use a stable 28V DC supply rated at 5A or higher.
3. Can gain be adjusted?
   Yes, gain customization between 25–37dB is available.
4. What connector type is used?
   It uses an N-Type Female RF connector.
5. Is cooling necessary?
   Active cooling is recommended for continuous high-power use.
6. Where is this amplifier typically deployed?
   In UAV ground stations, industrial drone systems, and professional long-range RF setups.

The ACASOM 960–1100MHz 60W GaN RF Power Amplifier is engineered for professional UAV systems operating in the 1GHz frequency band. With up to 48dBm (~60W) output power, it enhances control links and telemetry reliability in extended-range drone operations.

Operating at 28V DC with 4.2A current consumption at full output, the amplifier provides 37dB gain with customizable options from 25–37dB. The N-Type Female RF connector ensures low-loss, secure high-power antenna integration.

Its compact 128.5x53x17mm aluminum housing and -30℃ - +85℃ operating range make it suitable for fixed ground stations and mobile deployments. Available at Chipomi, this module delivers reliable RF performance for industrial UAV and long-range communication systems.
