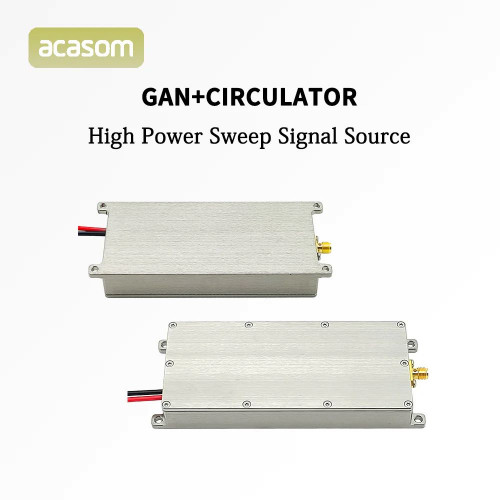

10W GaN RF Module 1220–1420MHz for Professional Integration | Chipomi

The ACASOM 1220MHz–1420MHz 10W GaN RF Module is a modern component engineered for systems that require reliability, efficiency, and stable operation. Its optimized RF architecture delivers precise performance across critical control and navigation frequencies.

Gallium Nitride technology provides 58% greater power efficiency than legacy LDMOS systems while offering a 3:1 power-to-weight advantage. The module is designed to sustain performance within an extended temperature range from -40°C to +85°C.

Dynamic power control enables real-time adjustable output from 10W to 100W. Adaptive waveform modulation and response times below 2ms help maintain fast system responsiveness.

The unit features MIL-STD-810H certified construction with a hermetically sealed RF compartment and active thermal regulation. EMP-hardened circuitry and modular architecture support seamless integration with radar tracking systems, EO/IR platforms, automated assessment tools, and networked infrastructure.

Technical Specifications:

Why Choose This Module:

• Higher efficiency than legacy LDMOS technologies.

• Strong 3:1 power-to-weight advantage.

• Stable performance in extreme temperatures.

• Real-time adjustable output power.

• Rugged MIL-STD-810H construction.

• Sealed RF compartment with active thermal management.

• Modular design for flexible integration.


Applications:

• Man-portable systems.

• Rapid-response vehicle platforms.

• Perimeter infrastructure arrays.

• Integrated network architectures.

• Strategic asset protection projects.

• Training and engineering RF environments.

Important Notes:

• Deployment is restricted to authorized government and military entities in compliance with international telecommunications regulations.

• Export controls apply.

FAQ:

1. Is the module suitable for integration with detection systems?
   Yes. The architecture supports connection with radar platforms, EO/IR systems, and automated assessment tools.
2. What advantages does GaN provide compared to LDMOS?
   It delivers higher efficiency, improved power-to-weight ratio, and stable performance under demanding loads.
3. What temperature range is supported?
   The module is designed to operate from -40°C to +85°C.
4. Can the output power be adjusted?
   Yes. Real-time adjustable power from 10W to 100W is supported.
5. How durable is the module construction?
   It features MIL-STD-810H certified construction with a hermetically sealed RF compartment and active thermal regulation.
6. What is the expected operational lifespan?
   The module has an MTBF of 12,500 hours based on accelerated life testing.

The ACASOM 1220–1420MHz 10W GaN RF module is a modern high-performance component designed for next-generation RF architectures. Built on Gallium Nitride technology, it delivers substantially greater efficiency than traditional LDMOS solutions while improving the power-to-weight ratio — a critical factor in advanced engineering projects.

Its extended operating temperature range from -40°C to +85°C enables reliable deployment in harsh environments. A hermetically sealed RF compartment with active thermal regulation helps maintain stable performance even during intensive operation, while EMP-hardened circuitry enhances resilience.

Real-time adjustable power and adaptive waveform modulation provide flexibility for evolving system requirements. The modular architecture supports seamless integration with radar tracking platforms, electro-optical detection systems, automated analytics, and networked command infrastructure.

Chipomi focuses on supplying professional-grade RF components engineered for durability, performance, and integration efficiency. This GaN module combines stable output capability with rugged construction and advanced architecture, making it a strong foundation for complex RF systems.
